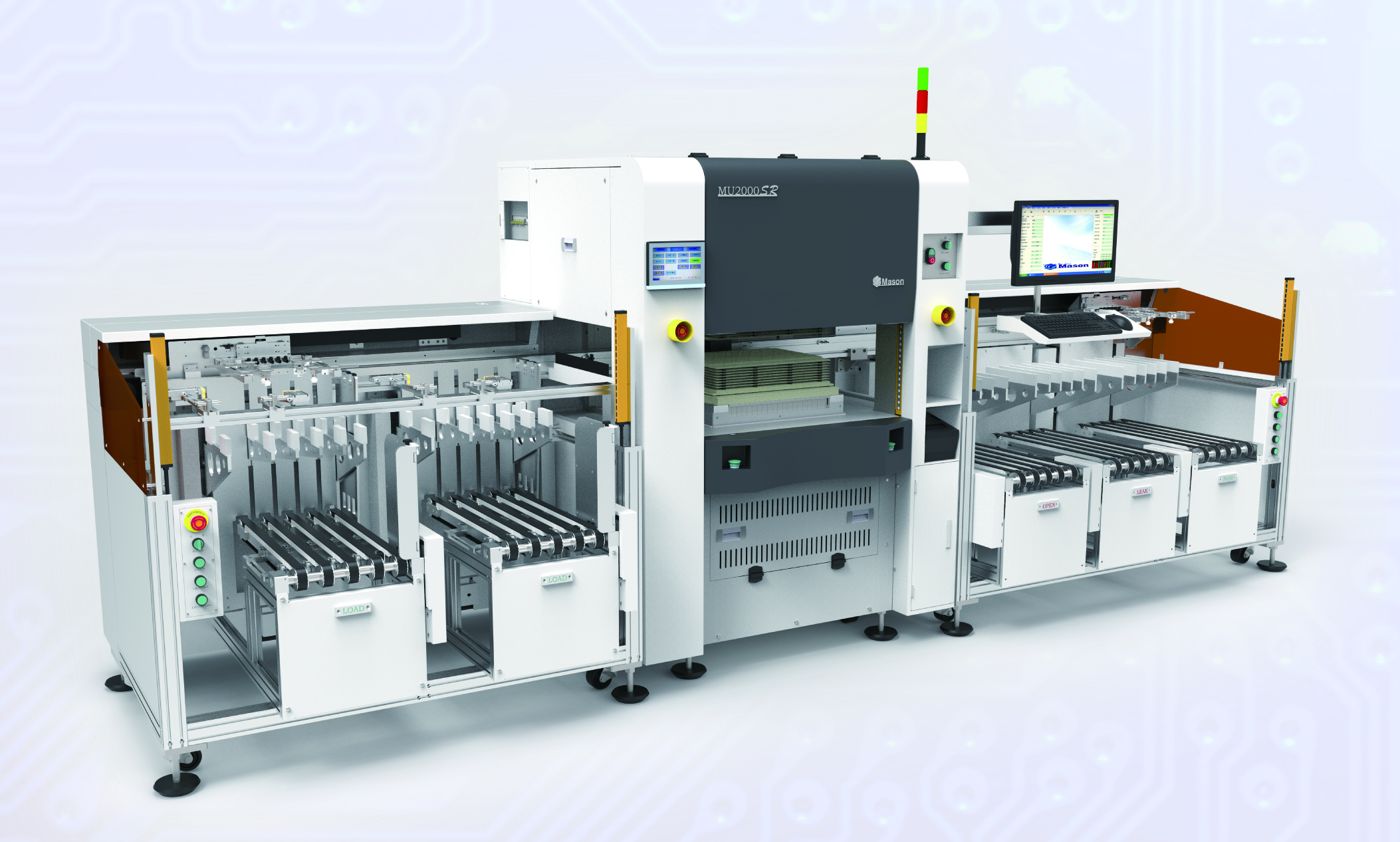

Application Area
|
|
|
|
1.PCB type: common multilayer PCB |
| |
2.Enduser product: mobile phone, ultrabook, portable electronic products, etc. |
| Optional Model |
|
| |
1、Long probe structure |
| |
2、Short probe structure |
|
Technical Advantages
|
|
| |
1.Double density (DD) and quad density (QD) are optional, the maximum testing area is 12.8"*16" |
| |
2.MASON fixture structure, compatible with fixture structures of other mainstream brands |
| |
3.Fixtures can be fine-adjusted in X/Y directions to improve PCB testing yield |
| |
4.High output, with capacity of more than 700PCS/h (electric test 1s) |
| |
5.A variety of automation solutions, satisfying needs of Industrial 4.0 |
| Configured density |
70mil（DD） 50mil（QD） |
| Max. test size |
12.8"*16"(325mmX406mm |
| Max. test points |
160K |
| Size of PCB |
60mm X 60mm（Min） 325mm X 406mm（Max） |
|
Thickness of PCB
|
0.4-4mm（auto） |
| Weight of PCB |
<2KG |
| Capacity |
700PCS/h（electric test 1s)） |
| Fixture fine-adjustment |
Fine-adjustment direction:X/Y error correction;fine-adjusting
accuracy:±0.01mm |
|
Fixture
|
Mason specific fixtures, long and short probe structures, compatible with fixtures of other structures, minimum size: 0.15mm, minimum theoretical distance between probes: 10mil
|
|
CAM software
|
MasonCam Software;meNet (point selecting software） me Fix (universal fixture making) meTab (overhauling software）
|
|
Net list
|
Mason MXG structure (other structures are optional)
|
|
Test voltage
|
50V~300V
|
|
Conduction resistance
|
10Ω～100Ω
|
|
Insulation resistance
|
1MΩ～100MΩ |
|
Carbon line test
|
200Ω～18KΩ，accuracy：±10%； |
|
Embeded resistance test
|
200Ω～200KΩ，accuracy：±10%； |
|
Power supply
|
AC380V±5％ 3 phase 5 wire system 50/60 Hz 6KW 9A |
|
Air supply
|
Air pressure：0.6~0.8MPa；air consumption：120L/min |
|
Environment
|
Dust free; temperature: 22℃～25℃;humidity: 40%～60% (noncondensating status) |
| Site size |
4433mm(L) x 1357mm(W) x 2109mm(H) |
|
Optional function
|
(1) Spark test (2) Fixture fine-adjustment (3) Board edge marking (4) Laser marking (5) QR code material number reading (6) QR code ID test data binding (7) Industrial 4.0 equipment inforamtion customizing |
| |
|
