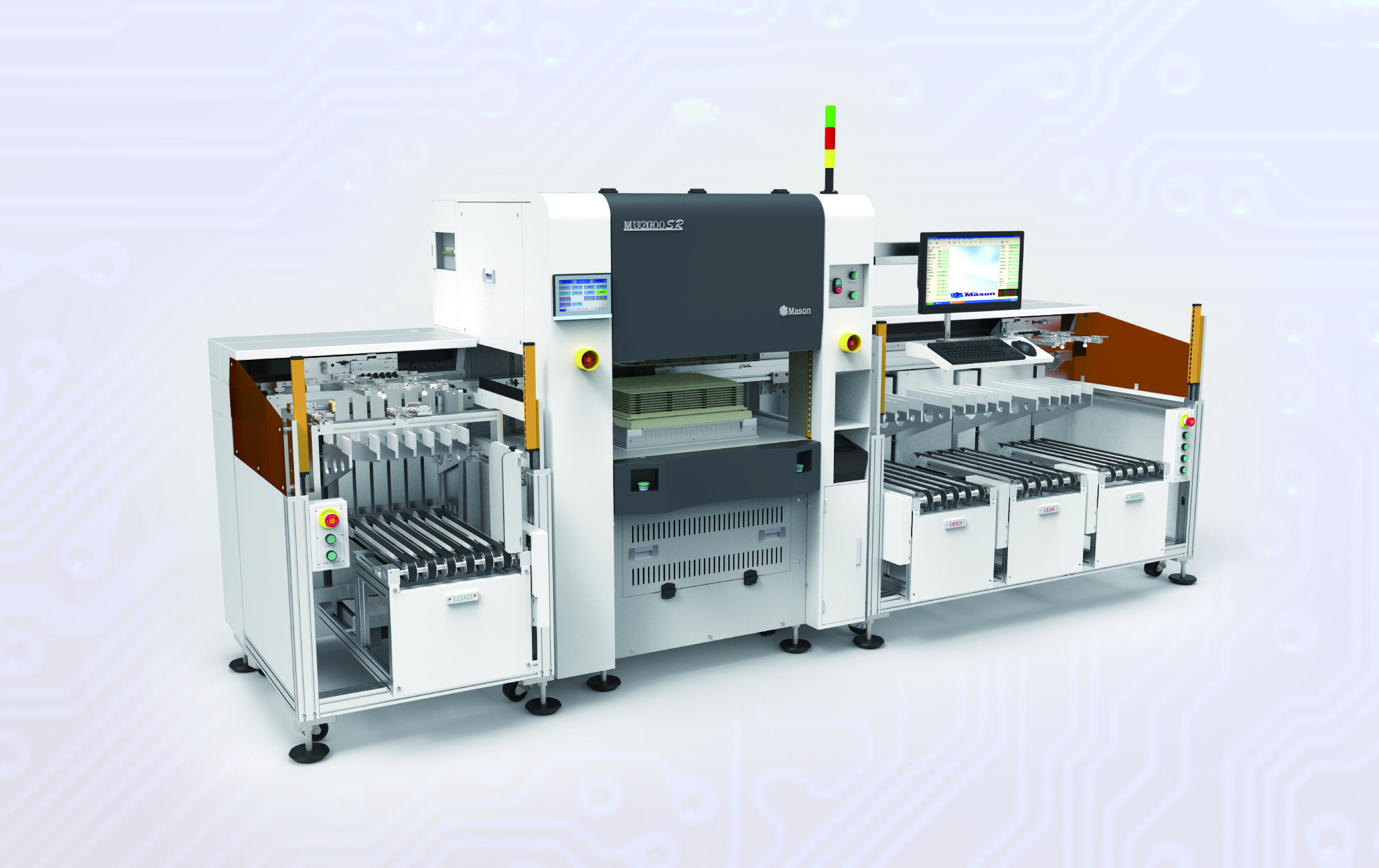

Application Area
|
|
|
|
1.PCB type: common multilayer PCB，middle and lower layer count HDI board |
| |
2.Enduser product: mobile phone, ultrabook, common LED, etc. |
| Optional Model |
|
| |
1、Long probe structure |
| |
2、Short probe structure |
|
Technical Advantages
|
|
| |
1. sextuple density(SD), testing area up to 10.1"X15.12" |
| |
2. LED board step-by-step test, low cost, easy to control testing quality |
| |
3. MASON fixture structure, fine-adjustable in X/Y direction to improve PCB test yield |
| |
4. A variety of automatic solutions, satisfying needs of industrial 4.0 |
| Configured density |
39.37mil (SD) |
| Max. test size |
10.08"*15.12" (256mm X 384mm) |
| Max. test points |
192K |
| Size of PCB |
60mm X 60mm（Min） 256mm×384mm (Max) |
|
Thickness of PCB
|
0.4-4mm(automatic) |
| Weight of PCB |
<2KG |
| Capacity |
700PCS/h（electric test 1s)） |
| Fixture fine-adjustment |
Mode: Microtype CCD alignment, fine-adjusting stroke: ±0.5mm; fine-adjusting direction: X/Y error correction; fine-adjusting accuracy: ±0.01mm |
| LED step-by-step test |
Step-by-step: upper die separateing XY<10 times; step-by-step direction: x/y direction; step-by-step accuracy: ±0.01mm |
|
Fixture
|
Mason specific fixture, long and short probe structures, compatible with other structures, minimum size: 0.12mm, minimum theoretical distance between probes: 8mil; |
|
CAM software
|
MasonCam Software;meNet (point selecting software） me Fix (universal fixture making) meTab (overhauling software）
|
|
Net list
|
Mason MXG structure (other structures are optional)
|
|
Test voltage
|
50V~300V
|
|
Conduction resistance
|
10Ω～100Ω
|
|
Insulation resistance
|
1MΩ～100MΩ |
|
Carbon line test
|
200Ω～18KΩ，accuracy：±10%； |
|
Embeded resistance test
|
200Ω～200KΩ，accuracy：±10%； |
|
Power supply
|
AC380V±5％ 3 phase 5 wire system 50/60 Hz 6KW 9A |
|
Air supply
|
Air pressure：0.6~0.8MPa；air consumption：120L/min |
|
Environment
|
Dust free; temperature: 22℃～25℃;humidity: 40%～60% (noncondensating status) |
| Site size |
3733mm(L) x 1226mm(W) x 2109mm(H) |
|
Optional function
|
(1) Spark test (2) Fixture fine-adjustment (3) Board edge marking (4) Laser marking (5) QR code material number reading (6) QR code ID test data binding (7) Industrial 4.0 equipment inforamtion customizing |
| |
|
