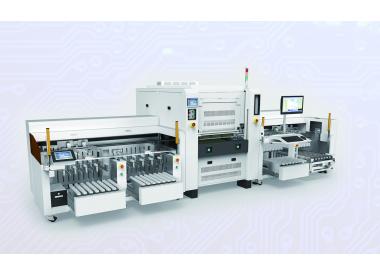

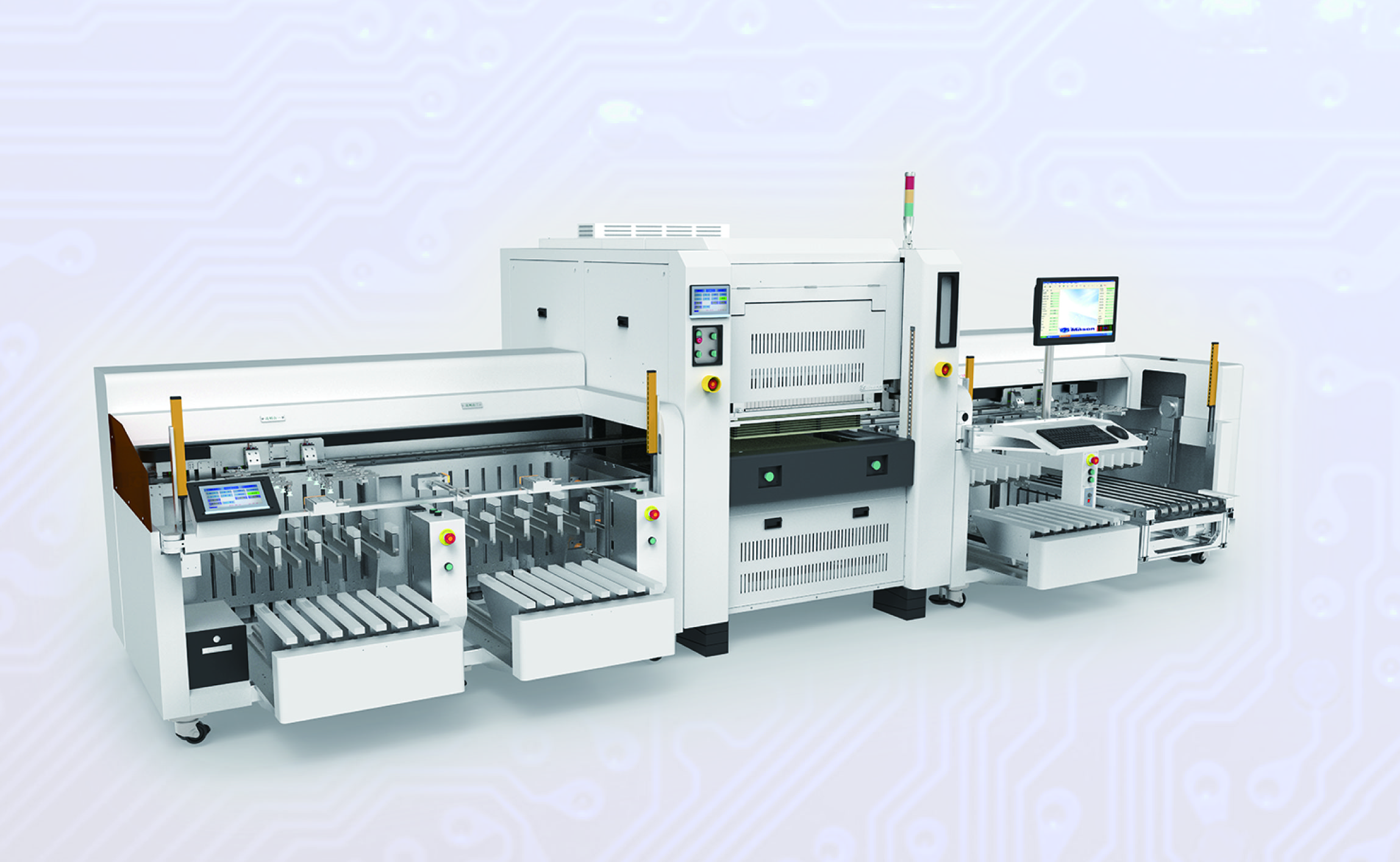

Application Area
|
|
|
|
1. PCB type: Multiplayer PCBs such as communication backplane, servo mainboard, etc. |
| |
2. Enduser protduct: communication device, large server, etc. |
| Optional Model |
|
| |
1、Long probe structure |
| |
2、Short probe structure |
|
Technical Advantages
|
|
| |
1. DD and QD are optional, maximum test area is 19.2"*25.6" |
| |
2. Switch card module design, select test area according to customer's needs. |
| |
3. MASON fixture structure, compatible with fixture structures of other mianstream brands |
| |
4. Fixture fine-adjustable in X/Y directions to improve PCB test yield |
| |
5. Upper die rotates 90 degrees and can move forward and backward, convenient for fixture installation, debugging and maintenance |
| Configured density |
70mil (DD) 50mil (QD) |
| Max. test size |
19.2"*25.6" (487mm X 650mm） |
| Max. test points |
384K |
| Size of PCB |
150mm x 150mm (Min) 487mm×650mm (Max) |
|
Thickness of PCB
|
0.4-4mm(automatic) |
| Weight of PCB |
<4KG |
| Capacity |
250PCS/h (test points:40000) |
| Fixture fine-adjustment |
Fine-adjusting direction: X/Y error correction; fine-adjusting accuracy: ±0.01mm |
|
Fixture
|
Mason specific fixture, long and short probe structures, compatible with other structures, minimum size: 0.15mm, minimum theoretical distance between probes: 10mil; |
|
CAM software
|
MasonCam Software;meNet (point selecting software） me Fix (universal fixture making) meTab (overhauling software）
|
|
Net list
|
Mason MXG structure (other structures are optional)
|
|
Test voltage
|
50V~300V
|
|
Conduction resistance
|
10Ω～100Ω
|
|
Insulation resistance
|
1MΩ～100MΩ |
|
Carbon line test
|
200Ω～18KΩ，accuracy：±10%； |
|
Embeded resistance test
|
200Ω～200KΩ，accuracy：±10%； |
|
Power supply
|
AC380V±5％ 3 phase 5 wire system 50/60 Hz 9KW 13A |
|
Air supply
|
Air pressure：0.6~0.8MPa；air consumption：200L/min |
|
Environment
|
Dust free; temperature: 22℃～25℃;humidity: 40%～60% (noncondensating status) |
| Site size |
5824mm (L) x 2352mm (W) x 2109mm (H) |
|
Optional function
|
(1) Spark test (2) Fixture fine-adjustment (3) Board edge marking (4) Laser marking (5) QR code material number reading (6) QR code ID test data binding (7) Industrial 4.0 equipment inforamtion customizing |
| |
|
