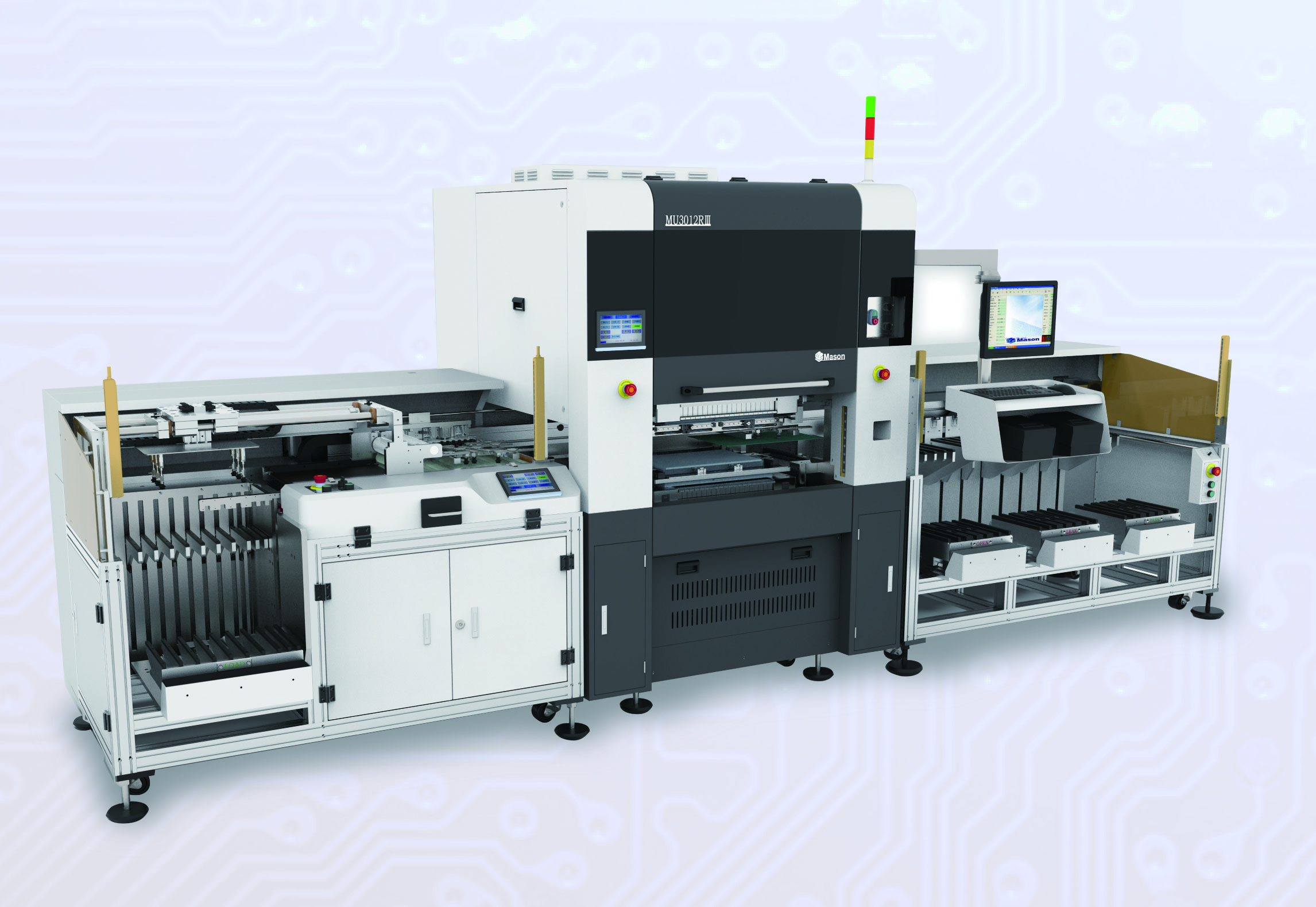

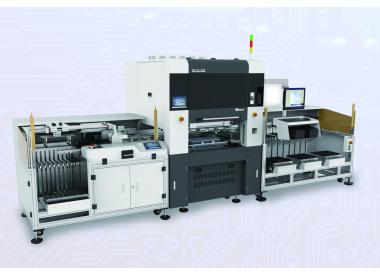

Application Area
|
|
|
|
1. PCB type: middle and high layer count HDI board, Micro LED |
| |
2. Enduser product: smart mobile phone, tablet computer. Micro LED, etc. |
|
Technical Advantages
|
|
| |
1. Real 8-density, test area up to 11.2"X16" |
| |
2. MASON fixture structure, universal microprobe fixture application, minimum probe 0.07mm |
| |
3. LED board step-by-step test, low cost, easy to control test quality |
| |
4. Online CCD fine-adjustment, real-time analysis and error correction when PCB deviates and contracts |
| |
5. Sticky roller + ionic wind removes static elctricity, to improve PCB test yield |
| Configured density |
35mil (8-density) |
| Max. test size |
Standard: : 9.6"X16"; 243mm X 406mm (Max)
Optional: 11.2"X16"; 284mm X 406mm (Max) |
| Max. test points |
Standard: 240K
Optional: 280K |
| Size of PCB |
60mm x 60mm (Min) 284mm×406mm (Max) |
|
Thickness of PCB
|
0.4-4mm(automatic) |
| Weight of PCB |
<2KG |
| Capacity |
600PCS/h (electric test 1s) |
| Fixture fine-adjustment |
Mode: fine-adjustment CCD alignment, fine adjustment stroke: ±0.5mm; fine-adjustment direction: X/Y error correction; fine-adjustment accuracy: ±0.01mm |
| LED step-by-step test |
Step-by-step times: upper die separate XY<10 times; step-by-step direction: x/y direction; step-by-step accuracy:±0.01mm |
|
Fixture
|
Mason short probe structure, compatible with other structures, minimum size: 0.07mm, minimum theoretical distance between probes: 5mil; |
|
CAM software
|
MasonCam Software;meNet (point selecting software） me Fix (universal fixture making) meTab (overhauling software）
|
|
Net list
|
Mason MXG structure (other structures are optional)
|
|
Test voltage
|
50V~300V
|
|
Conduction resistance
|
10Ω～100Ω
|
|
Insulation resistance
|
1MΩ～100MΩ |
|
Carbon line test
|
200Ω～18KΩ，accuracy：±10%； |
|
Embeded resistance test
|
200Ω～200KΩ，accuracy：±10%； |
|
Power supply
|
AC380V±5％ 3 phase 5 wire system 50/60 Hz 6KW 9A |
|
Air supply
|
Air pressure：0.6~0.8MPa；air consumption：90L/min |
|
Environment
|
Dust free; temperature: 22℃～25℃;humidity: 40%～60% (noncondensating status) |
| Site size |
4571mm (L) x 1704mm (W) x 2140mm (H) |
|
Optional function
|
(1) Spark test (2) Fixture fine-adjustment (3) Board edge marking (4) Laser marking (5) QR code material number reading (6) QR code ID test data binding (7) Industrial 4.0 equipment inforamtion customizing |
| |
|
