Application Area
|
|
|
|
1.PCB type: Special-shaped, irregular multi-layer boards |
| |
2.Terminal type: Industrial equipment, household appliances, etc |
| |
3.Compatible type: Single-sided, double-sided boards, regular multi-layer boards |
|
Technical Advantages
|
|
| |
1. High speed、high efficiency running output than 1000pcs/h |
| |
2. Loop loading and unloading,non-stop automatic testing for higher testing effciency |
| |
3. Loading and unloading equipment adopts arm type is convenient to adjust and meet the demand of special-shaped plate test |
| |
4. Fully enclosed operating space to ensure safe |
| Test Points |
2048-16384 |
| Fixture Size |
450mm*400mm(MAX) |
| PCB Area |

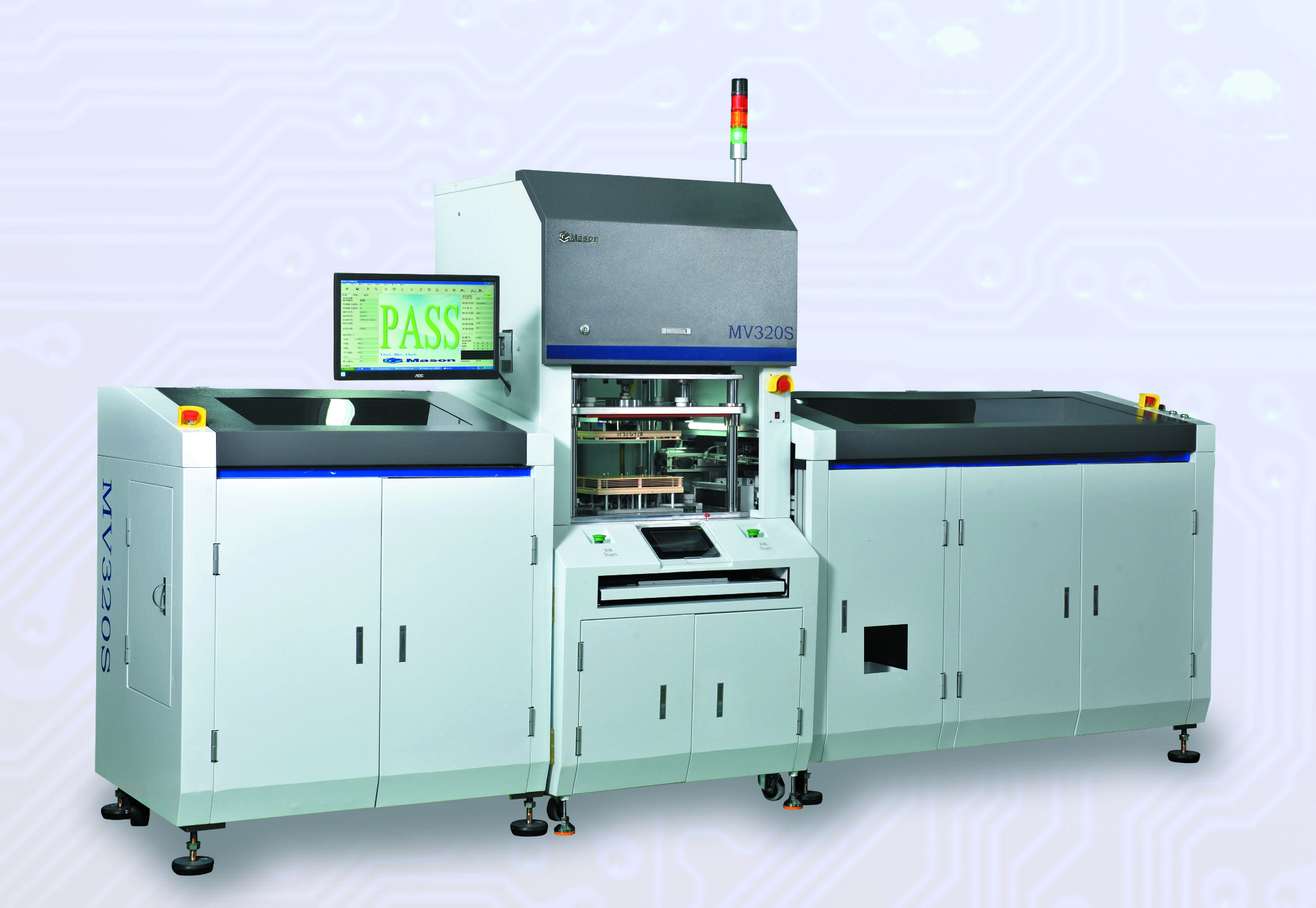

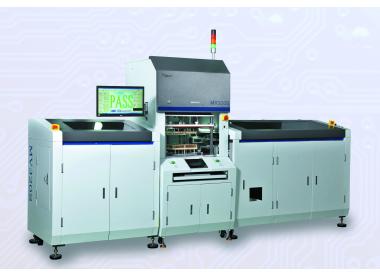

MV320S:380mm*280mm(Min:80mm*80mm)
MV320L:480mm*400mm(Min:80mm*80mm) |
|
PCB Thickness
|
0.6mm-4.0mm |
|
Efficiency
|
700-1100PCS/H(electrical test time：0.5S) |
|
Test Speed
|
≥3000 p/s
|
|
ConductionTest
|
10Ω～100Ω |
|
Insulation Test
|
1MΩ～100MΩ
|
| Test Voltage |
50V~300V |
| Test Current |
20uA~20mA |
| Embedded Resistance Test |
|
|
Load/Unload
|
LOAD、OPEN、PASS (Automatic) |
| Dimension |
3550mm(L)×900mm(W)×1850mm (H)
4000mm(L)*1600mm(W)*1900mm(H)
|
| Weight |
1500kg |
| Loading PCB high |
Load、Pass、Open、Leak（Stacking high≥350mm） |
| Temperature |
20℃~25℃ |
|
Humidity
|
40%~60% |
|
Power supply
|
Single-phase three wire system AC220V/50HZ ±5% 10A |
|
Air supply
|
0.6～0.8MPa (Dry、Clear ) |
| Other |
No Vibration、No Dust、No corrosive gases；
Optional functions：Marker；Quick rubber test；4-wire low resistance test；Spark |
