Application Area
|
|
|
|
1.PCB Type: Single sided, Double sided PCB、multilayer PCB |
| |
2. Enduser Product: Household appliances，Industrial equipments，etc. |
| |
3. Compatibility Test: HDI、Communication backplane |
|
Technical Advantages
|
|
| |

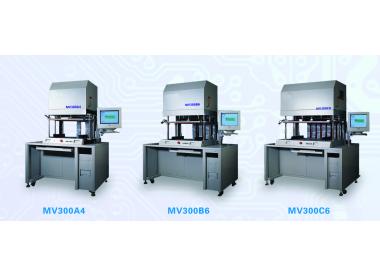

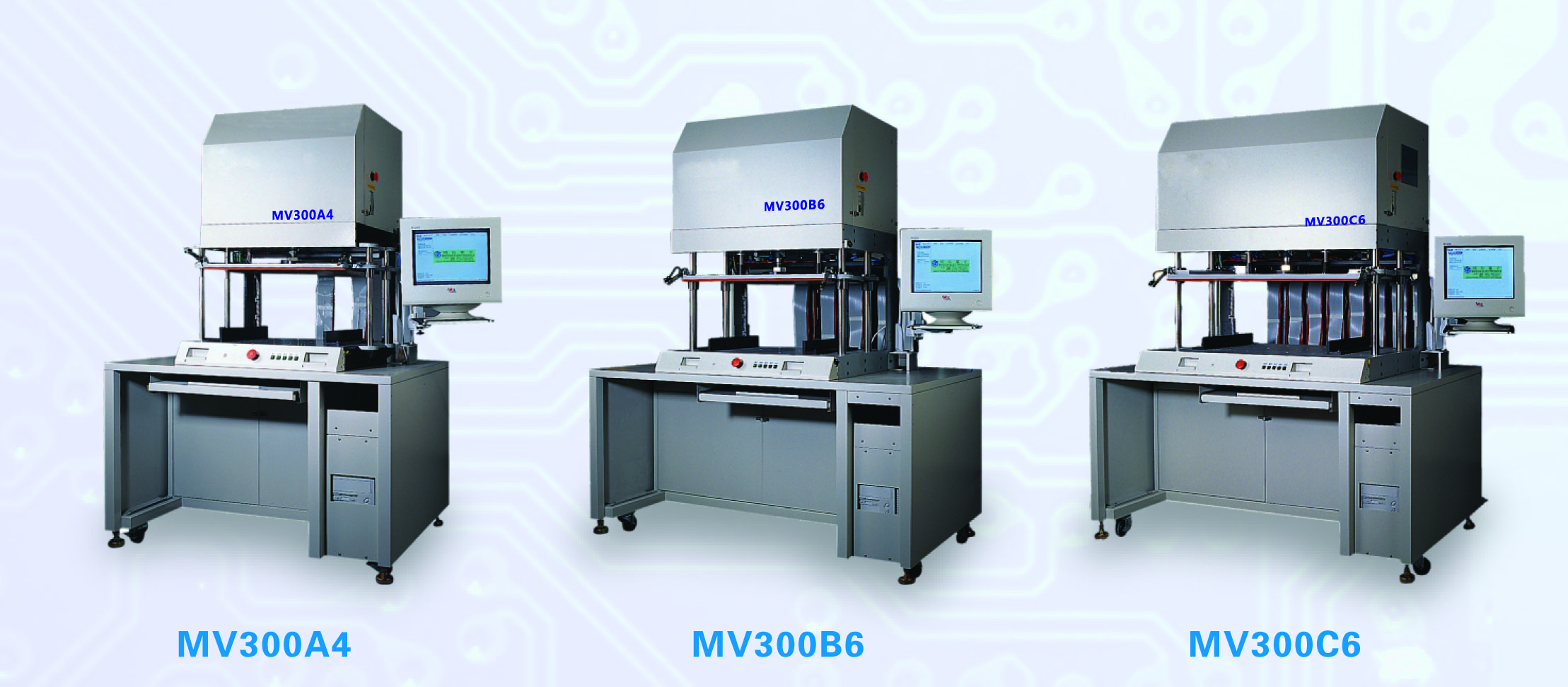

1. MV300A4
Dedicated fixture testing for single side, double side or multi-layer PCB of industrial facilities and consumer electrical appliances |
| |
2. MV300B6
Dedicated fixture testing for PCB of large area, large number of points and high density |
| |
3. MV300C6/D6
Dedicated fixture testing for general communication backplane PCB with large area |
| |
4. MV300L6
LED light bar substrate testing |
| |
5. MV300XL
Large backplane testing |
| Electronic test speed |
■ 2000~4000 points/sec |
| Test voltage |
50V～300V |
|
Insulation resistance
|
1MΩ～100MΩ ±10% |
|
Open circuit resistance
|
▲10Ω～100Ω ±10%
|
| Carbon line resistance |
200Ω～18KΩ |
| Open circuit test current |
20mA(Max) |
| Temperature |
18℃~25℃ |
|
Humidity
|
40%~60%(Non-condensing) |
|
Environment
|
Dustfree |
|
Optional
|
4-Wire test、PCR(Pressure sensitive Conductive Rubber)、
PCB box for safet manual operation 、Automatic ink-jet marker for PCB、 Integrated marker system for PASS boards |
| ▲ |
Low resistance test result within 20 ohm relates to fixture building accuracy； |
| ■ |
Test speed varies with the change of test condition; |
