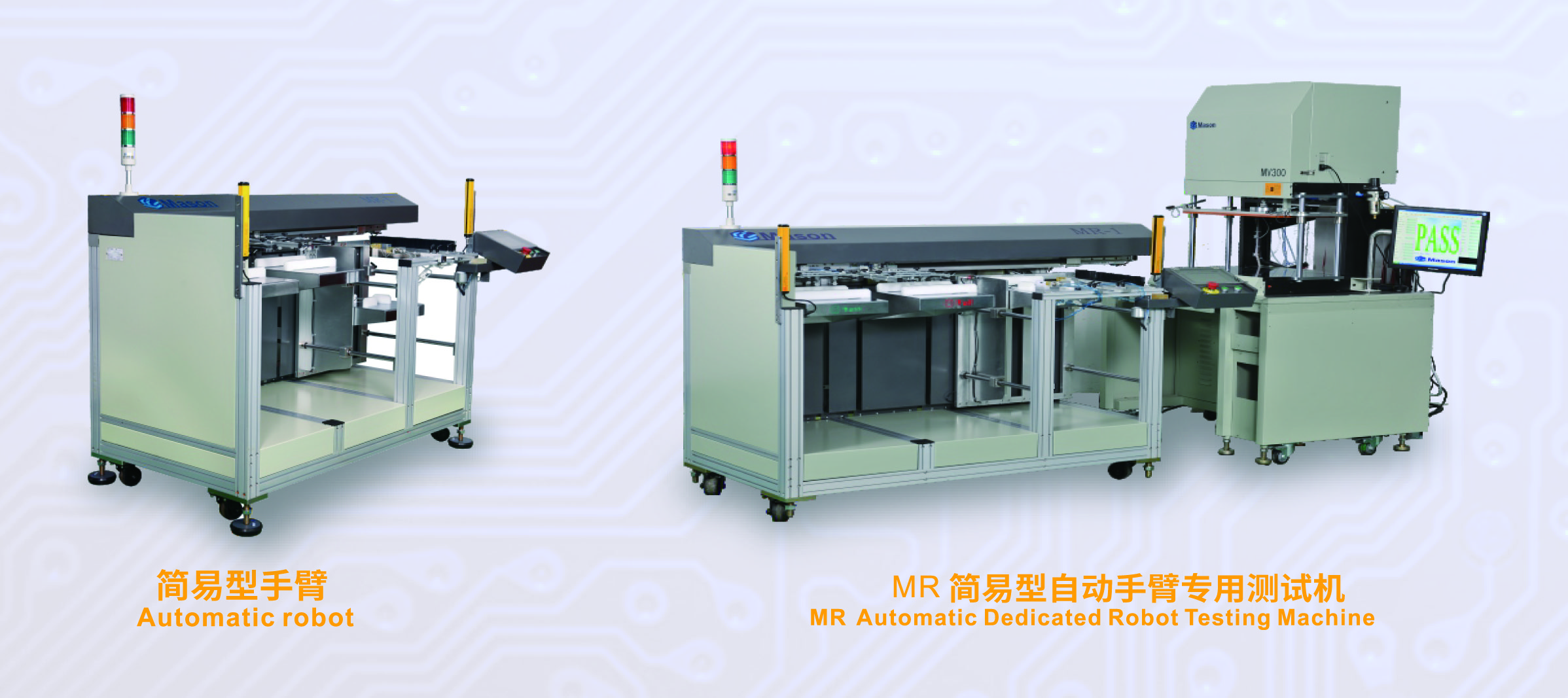

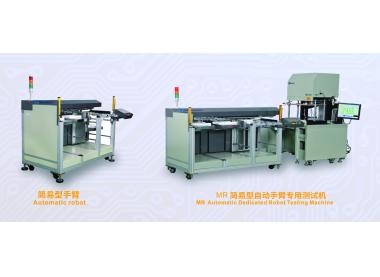

Application Area
|
|
|
|
1.PCB Type: Single sided、 Double sided PCB |
| |
2.Enduser Product: Household appliances、Industrial equipments、 |
| Model selection |
|
| |
1.Standard model (auto feeding and receiving materials) |
| |
2.Auto loading; Auto unloading of PASS board |
| |
3.With cleaning system
|
|
Technical Advantages
|
|
| |
1. Loading and unloading PCBs platform are on the same side for easier operating and saving space to improve plant utilization |
| |
2. One robot with two sucking board equipments to loading and colleting PCBs at the same time |
| |
3. Updating from manual to automatic testing machince by being used with Mason MV300A4\B6\C6\D6 |
| |
4. Fully enclosed operating space to ensure safe4. Be compatible with other update program |
| |
5. Retractable arm to reduce noise and increase efficiency and save space |
| PCB Size |
A:340mmx420mm(MAX);80mmx80mm(MIN)
B:340mmx570mm(MAX);80mmx80mm(MIN)
C:100mm x 600mm(MAX); 10mm x 150mm(MIN)
D: 300mm x 600mm(MAX); 10mm x 150mm(MIN) |
| Thickness of PCB |
0.024"~0.16"(0.6mm~4.0mm) |
| Fixture |
Mason specific fixtures (compatible with fixtures of other format) |
|
Net list
|
Mason MXD format(compatible with other formats such as MXA、ETT) |
| Temperature |
22℃~25℃ |
|
Humidity
|
50%~60%(Non-condensing) |
| Environment |
Dustfree |
|
Power supply
|
Single phase 3wire AC220V ±5% 50/60HZ |
|
Air supply
|
6~8KGF/cm² |
| Size |
2000mm(L)x1200mm(W)x1400mm(H) |
| Optional |
|
|
▲
|
Low resistance test result within 20 ohm relates to fixture building accuracy |
|
■
|
Test speed varies with the change of test condition |
