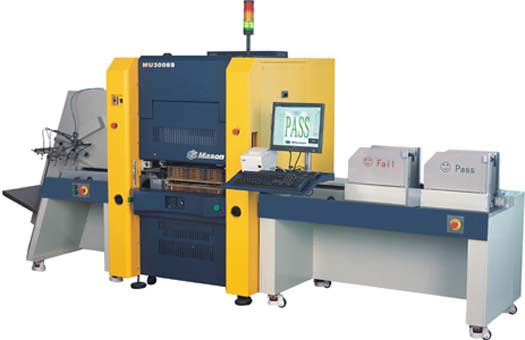

Testing Area
|
|
|
Testing points
|
163840（Max）QD /81920（Max）DD
|
|
Testing area（X*Y）
|
Min:9.6"× 12.8" Max:16"×12.8"
|
|
Testing Power
|
|
|
Size of PCB（X*Y）
|
Min：50x50mm（2" x 2"） Max：430x355（17" x 14"）
|
|
Density
|
50mil（QD）/70mil（DD）
|
|
Thickness of PCB
|
0.2～8mm（Manual） 0.6～4.0mm（Automatic）
|
|
Fixture Format
|
|
|
Fixture
|
Mason specific fixture（compatible with fixtures of other format）
Min pin diameter:0.15mm, Min distance between pin:8mil
|
|
CAM
|
MUNet2000（Selective fixture design, Net list support）
|
|
|
MRNet2000（Bad points auxiliary repair system）
|
|
Grid
|
Mason MXG format（formats of other brands can be chosen）
|
|
Testing Parameter
|
|
|
Insulation testing voltage
|
50V～300V
|
Insulation testing resistance
|
1MΩ～100MΩ
|
|
Conduction testing
|
10Ω～100Ω（1000Ω optional）
|
|
Carbon board testing
|
10Ω～18KΩ±10%
|
|
Carbon resistance testing
|
100Ω～18KΩ±10%
|
|
Electronic testing speed
|
6000—8000 points/sec.
|
|
Operating Environment
|
|
|
Temperature
|
22℃～25℃
|
|
Humidity
|
40%～60%（non-freezing）
|
|
Power Consumption
|
|
|
Power
|
AC380V±5% 3 phase 5 wire
|
|
Air source
|
0.6-0.8MPa
|
|
Volume
|
|
|
Size
|
4000mm（L）×1400mm（W）×1870mm（H）
|
|
Optional
|
|
|
|
Fixture with manual and semi-automatic micro-tuning feature
|
|
|
Ink-jet marker for PCB
|
|
|
Box for storing the defect PCB
|
|
|
Oily pen for marking on PCB
|
|
|
Oily pen for marking on boundary of PCB
|
