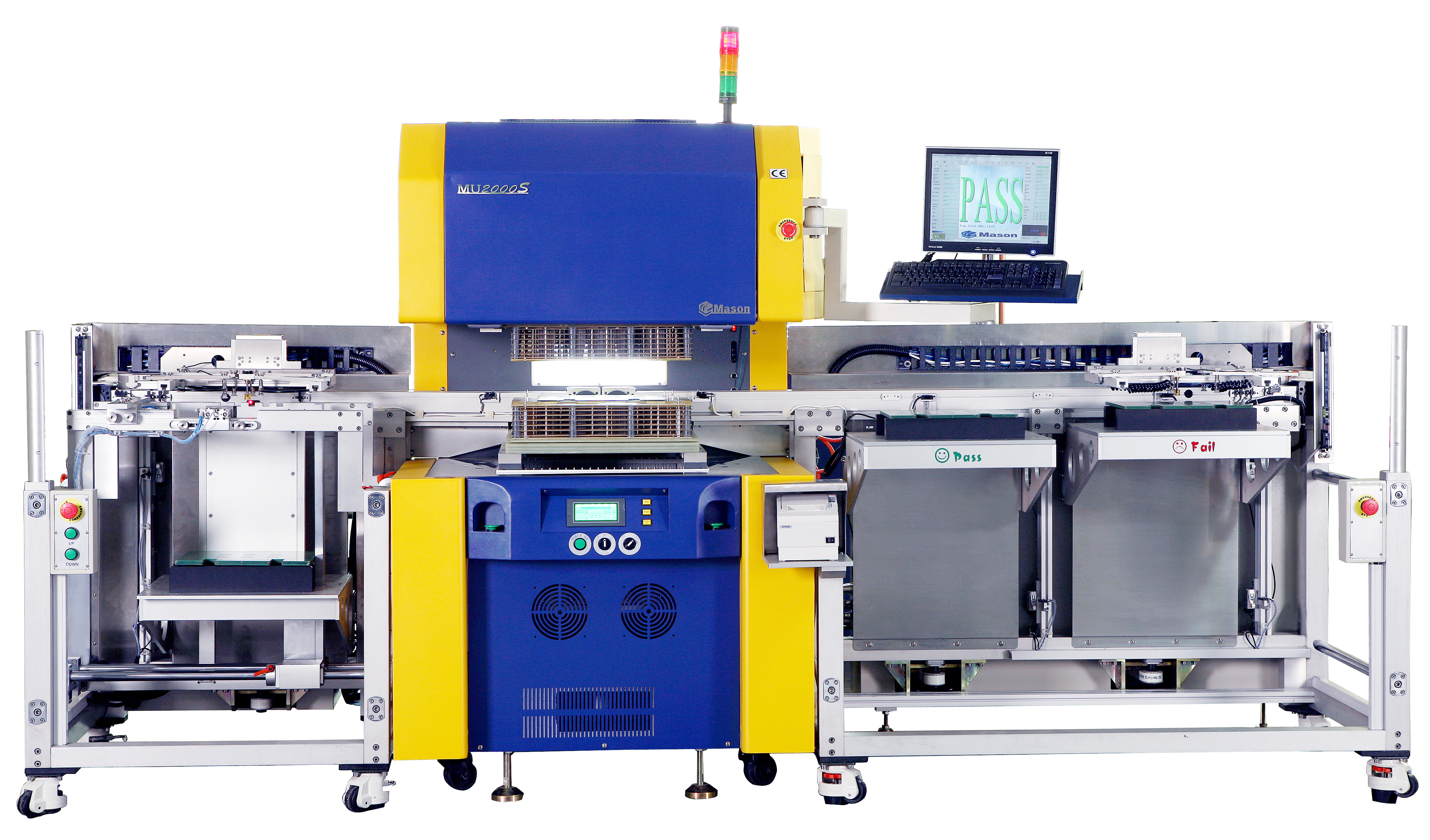

Testing Area
|
|
|
Testing points
|
QD 163840（Max）/DD 81920（Max）
|
|
Testing area（X*Y）
|
Min:9.6" x 12.8" Max:16"x 12.8"
|
|
PCB Testing Power
|
|
|
Size for PCB（X*Y）
|
Min：60mm（L）x 60mm（W）Max：430mm（L）x355mm（W）
|
|
Density
|
50mil（QD）/70mil（DD）
|
|
Thickness of PCB
|
Automatic：0.6～4.0mm Manual：0.2～8.0mm
|
|
Fixture Format
|
|
|
Fixture
|
Mason specific fixtures（compatible with fixture of format） Min pin diameter：0.15mm Min distance between pin：8mil
|
|
CAM
|
MUNet 2000（Selective fixture design, Net list support）
|
|
|
MRNet 2000（Bad point auxiliary repair system）
|
|
Grid
|
Mason MXG format（formats of other brands can be chosen）
|
|
Testing Parameter
|
|
|
Insulation testing voltage
|
50V～300V±10%
|
|
Insulation testing resistance
|
1MΩ～100MΩ±10%
|
|
Conduction testing
|
10Ω～100Ω±10%（1000Ω optional）
|
|
Carbon resistance testing
|
10Ω～18KΩ±10%
|
|
Carbon board testing
|
200Ω～18KΩ±10%
|
|
Electronic testing speed
|
6000～8000 points/sec.
|
|
广东省深圳市南山区西丽镇沙河新围工业区第九栋（邮编518055）
网址：www.masone.com
电话：+86-755-26987698
传真：+86-755-26987611
|
Operating Environment
|
|
|
Temperature
|
22℃～25℃
|
|
Humidity
|
40%～60% （non-freezing）
|
|
Power Consumption
|
|
|
Power
|
AC380V±5%; 3 phase 5 wire
|
|
Air source
|
0.6～0.8MPa
|
|
Volume
|
|
|
Size
|
3368mm（L）x 1116mm（W）x1916mm（H）
|
|
Optional
|
|
|
|
Oily pen for marking on PCB
|
|
|
Box for storing the defect PCB
|
|
|
Multi-purpose marker for PCB
|
