Testing Parameter
|
|
|
Testing voltage
|
50V～300V
|
|
Open circuit resistance
|
10Ω～100Ω±10% （1000ΩOptional）
|
|
Insulation resistance
|
1MΩ～100MΩ±10%
|
|
Open circuit testing current
|
20 mA（Max）
|
|
Carbon line resistance
|
200Ω～18KΩ
|
|
Operating Environment
|
|
|
Temperature
|
22℃-25℃
|
|
Humidity
|
40%～60%以下（Non-freezing）
|
|
Fixture Format
|
|
|
Fixture
|
Mason specific fixture（compatible with fixtures of other format）
|
|
CAM
|
MUNet2000（Selective fixture design, Net list support）
|
|
Optional
|
|
|
|
Oily pen for marking on surface of PCB
|
|

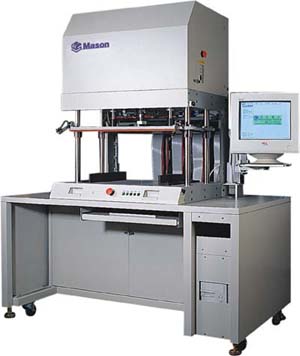

MV300-B6
|
|
|
Testing area
|
28" X 17"
|
|
Testing points
|
2048～16384
|
|
Structure
|
Improved 6 shafts driven（including 4 ground shafts）
|
|
Size
|
1200mm×870mm×1800mm
|
|
Power
|
AC220V±5％ 50/60 Hz 1 phase 3 wire 5A
|
