Testing Parameter
|
|
Testing voltage
|
50V~300V
|
Open circuit resistance
|
10Ω~100Ω±10% (1000ΩOptional)
|
Insulation resistance
|
1MΩ~100MΩ±10%
|
Open circuit testing current
|
20 mA(Max)
|
Carbon line resistance
|
200Ω~18KΩ
|
Operating Environment
|
|
Temperature
|
22℃-25℃
|
Humidity
|
40%~60%以下(Non-freezing)
|
Fixture Format
|
|
Fixture
|
Mason specific fixture(compatible with fixtures of other format)
|
CAM
|
MUNet2000(Selective fixture design, Net list support)
|
Optional
|
|
|
Oily pen for marking on surface of PCB
|

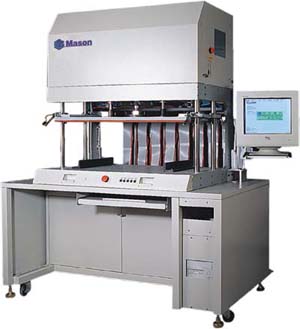

MV300-C6
|
|
Testing area
|
38"X 17"
|
Testing points
|
2048~16384
|
Structure
|
Improved 6 shafts driven(including 4 ground shafts)
|
Size
|
1600mm×870mm×1800mm
|
Power
|
AC220V±5% 50/60 Hz 1 phase 3 wire 8A
|
